Super spacer IG line

IG line with super spacer applicator can apply super spacer frame on glass automatically. The first glass after washing-drying and then stop in the press machine at the same time suctioned to the front panel. The second glass will stop at super spacer section and position precisely by X-Y axis. Applicator will automatically apply super spacer frame on glass. After spacer frame attaching then the second glass continues to press to be assembled and pressed automatically. The IGU comes out and first sealing finish. Argon gas filling function and Aluminum frame function can be added as an optional.

Feature

• PLC control system with touch screen interface
• Multi-axis servo linkages, intelligent, fast and accurate
• Adjustable V-cutting blade for shape glass
• Special blade for Georgian bar processing
• Automatic inspecting glass dimension and thickness
• Automatic collection system for cutting chips
• Tape bonding device is available
• Suitable for triple insulating glass units for different spacer widths
• Remote communication function
• Adopt inverter drive, automatically adjust on material feeding speed according to compensation
• Double applicator heads are available for two different spacers, allowing alternating application easily
• Option:
• Head’s option: double applicator heads
• Head’s model: butyl coating device
• Max glass size: can be customized

Technical Data

• Max glass size: 2500×3000mm (2000×2500mm)
• Min glass size: 300×450mm
• Spacer thickness: 8~18mm (8-18mm*option)
• Insulating glass thickness: 10-48mm
• Washing glass thickness: 3-15mm
• Washing speed: 0-10m/min
• LOW-E brush: 6 units (3 units for Low-E)
• Conveying speed: 45m/min
• Power: 3P 380V/1P+N 220V 50Hz 38kW
• Air source: Air quantity: 0.8m³/ min 　Air pressure: 0.7MPa
• Water conductivity: ≤30μs/cm

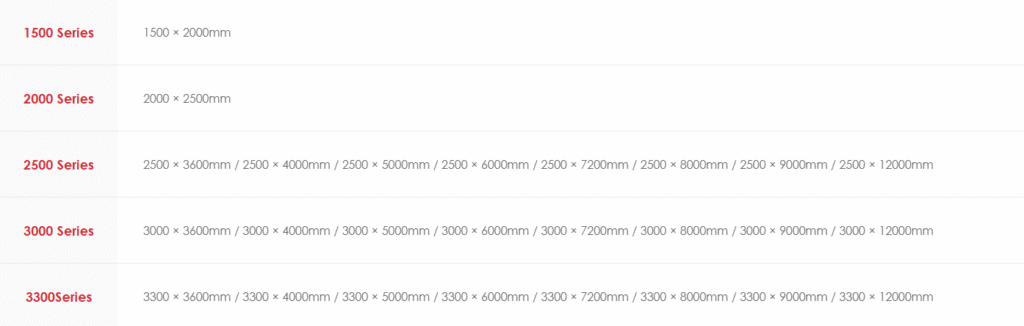

Customized IG line- insulated glass processing size
