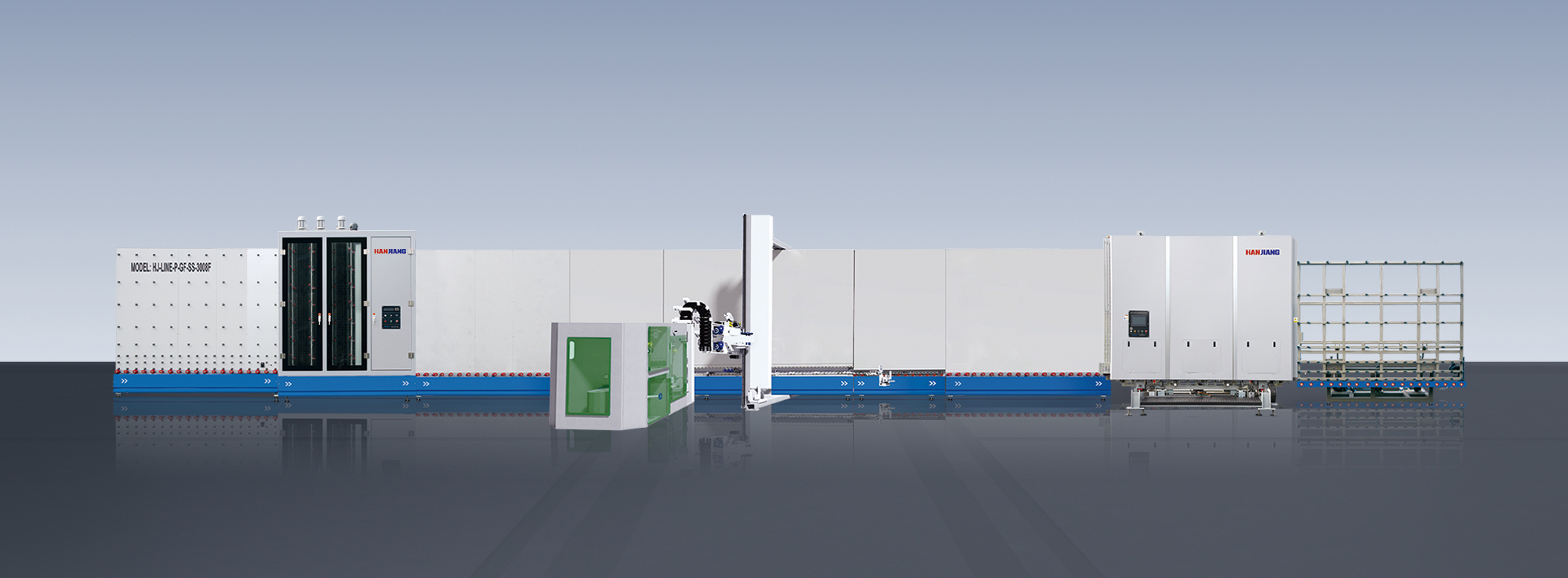

Assemble in press IG line

Assemble in press IG line can process double glass, triple glass, 1~4 side step IG or offset IG (Insulated glass). The first glass is automatically conveyed through washing-drying and inspecting and stop in the press machine at the same time suctioned to the front panel. The second glass stops at the spacer attaching section and position automatically. After put spacer frame then the second continues to press to be assembled and pressed automatically. The IGU comes out and first sealing finish.

Feature

• PLC control system with touch screen interface
• Perfect washing performance for on/off line Low-E glass
• Air knives automatic adjustment according to the thickness of glass
• Optimal energy saving system with numerical intermittent working style
• Inverter driving for Low-E brush rotatory speed
• Automatic positioning system for spacer frame (*option)
• Automatic positioning system for glass
• Servo and Torque driving system for accurate pressing
• Assembly-in-press
• Automatic and accurate positioning for step IG processing
• Automatic and accurate positioning for three-layer IG processing
• Remote communication function (*option)

Technical Data

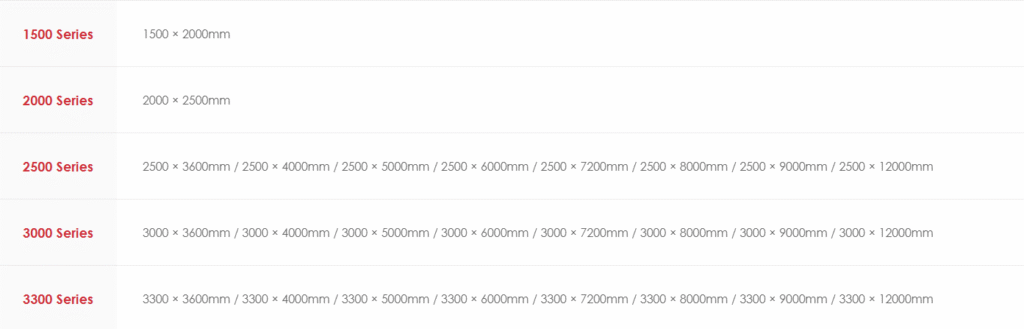

• Max glass size：2500×3000mm (2000×2500mm)
• Min glass size：300 × 450mm
• Insulating glass thickness：10-48 mm
• Washing glass thickness：3-19mm
• Washing speed：0-10m/min
• Low-E brush：6 units (3 units for Low-E)
• Conveying speed：45 m/min
• Press suction：6kg/EA
• Power：3P 380V/1P+N 220V 50Hz 38kW
• Air source：Air quantity: 0.8m³/ min Air pressure: 0.7MPa
• Water conductivity：≤30μs/cm
