High speed IG line

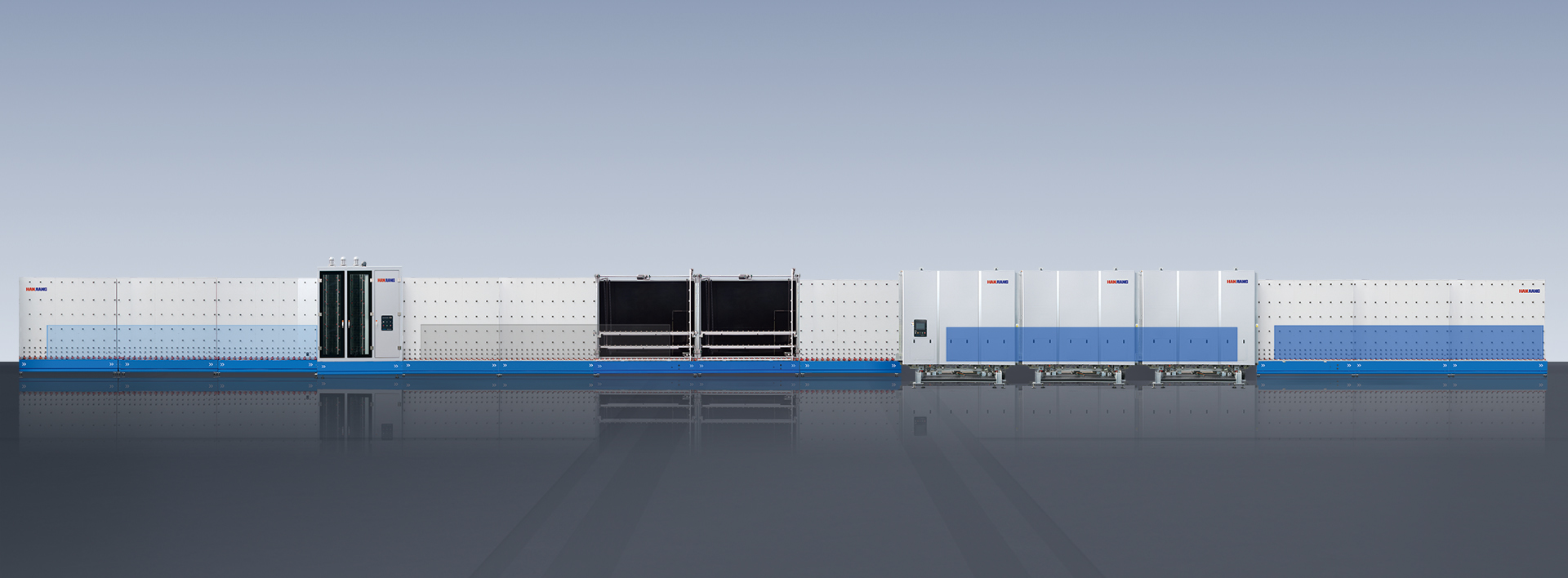

High speed IG line with double glass working position to process some small size IG (Insulated glass) /double glass such as metro glass or home appliance glass- refrigerator glass, etc. with high efficiency. Glass conveyor is divided by 2 smaller conveyor, so more glasses can be loaded on one IG line.

Feature

• PLC control system with touch screen interface
• Perfect washing performance for on/off line Low-E glass
• Air knives automatic adjustment according to the thickness of glass
• Optimal energy saving system with numerical intermittent working style
• Inverter driving for Low-E brush rotatory speed
• Automatic positioning system for spacer frame(*option)
• Automatic checking system for glass dimension and thickness ; Adjust optimal closed chamber automatically to achieve superior gas filling efficiency and minimum gas consumption
• Automatic positioning system for glass
• Servo and Torque driving system for accurate pressing
• High-tech press machine apply 3 or 4 axis linkage servo system; Accurate and efficient assembly-gas filling-press function
• Automatic and accurate assembly for triple IG processing and selective function for gas filling
• Ensure the argon content ≥85% (GB/T11944-2012 new national standard of China)
• Automatically accurate positioning for 3 or 4 side step IG with gas filling
• Remote communication function (*option)

Technical Data

• Max glass size Normal mode：2500×3000mm(2000×2500mm)
• Max glass size High-speed mode：1200×1200mm(800×800mm)
• Min glass size: 300 × 450mm
• Insulating glass thickness: 10-48 mm
• Washing glass thickness: 3-19mm
• Washing speed: 0-10m/min
• Low-E brush : 6 units (3 units for Low-E)
• Conveying speed: 45 m/min Press suction: 6kg/EA
• Filling time: 3-5seconds (900×1200mm)
• Environment temperature: 7-50℃
• Power:3P 380V/1P+N 220V 50Hz 38kW
• Air source:Air quantity: 0.8m³/ min Air pressure: 0.7MPa
• Water conductivity: ≤30μs/cm
• Cycle time: 45-35s/㎡
